385R

Hold Rating: 7500 lbs.

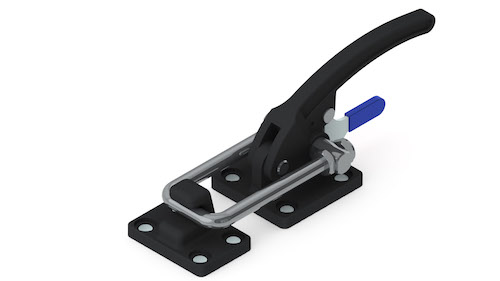

An extra heavy-duty horizontal toggle latch clamp that features a special catch to hold the clamp in the clamped position to reduce unexpected opening. A mating hook is available at additional cost. The clamp is zinc plated, with a blue vinyl grip.

PricingQty 1-99Qty 100+
385R $70.00 $59.00
2-D AutoCAD Drawing File 385r.dwg
Product Dimensions


ModelABCDEFF1GHJKN OQ
385R 3.75 8.75min. 1.38 2.25 2.25 3.38 N/A 3.13 2.25 0.41 2.13 0.47 1.13 5.63-6.70

All dimensions are in inches unless otherwise noted.
