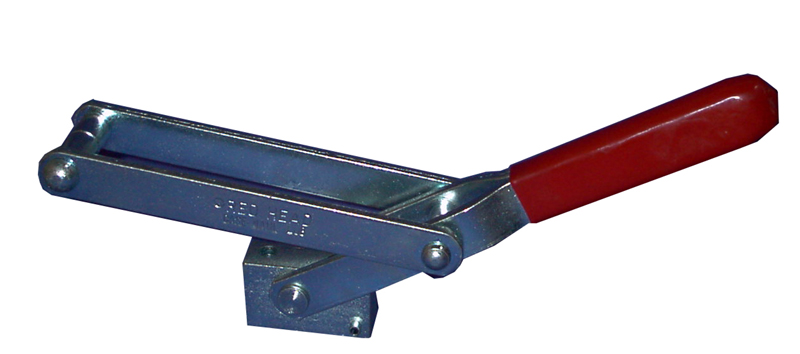

LU-8
Hold Rating: 2000 lbs.
The largest and heaviest of our latch clamps. This clamp uses heavier gauge steel than the LU-4.
| Pricing | Qty 1-99 | Qty 100+ |
| LU-8 | $13.34 | $12.29 |
 | |||
| |||
| |||
Product Dimensions | |||
| |||
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LU-8 | 6.50 | 1.70 | 2.63 | 0.31 | 1.12 | 0.75 | 3.42 | 1.31 | 2.00 | 0.33 | 10.88 | 0.75 | 0.75 | 2.75 | 2000 | 1.25 | 1.75 | 800 |
All dimensions are in inches unless otherwise noted.
